Description

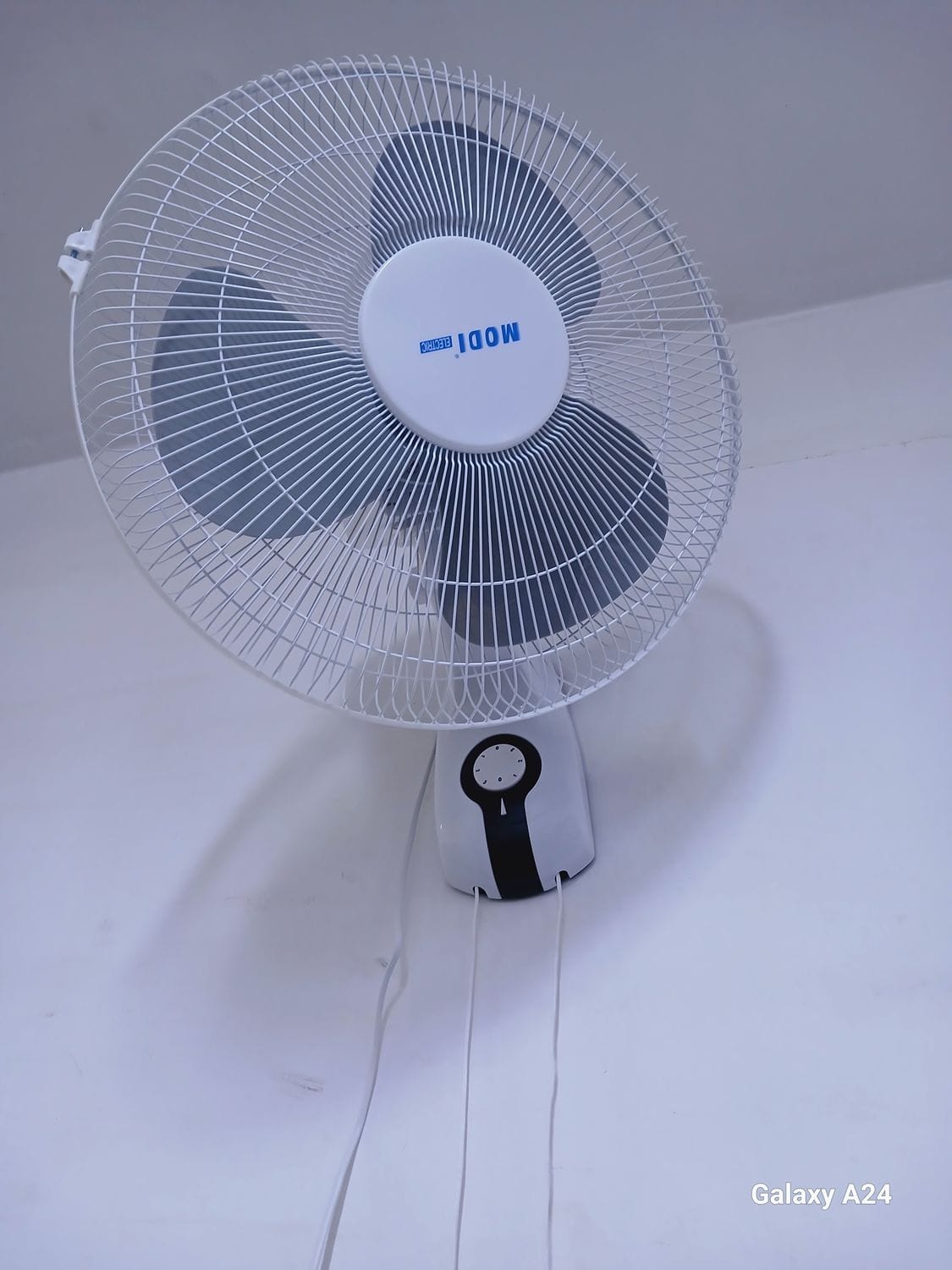

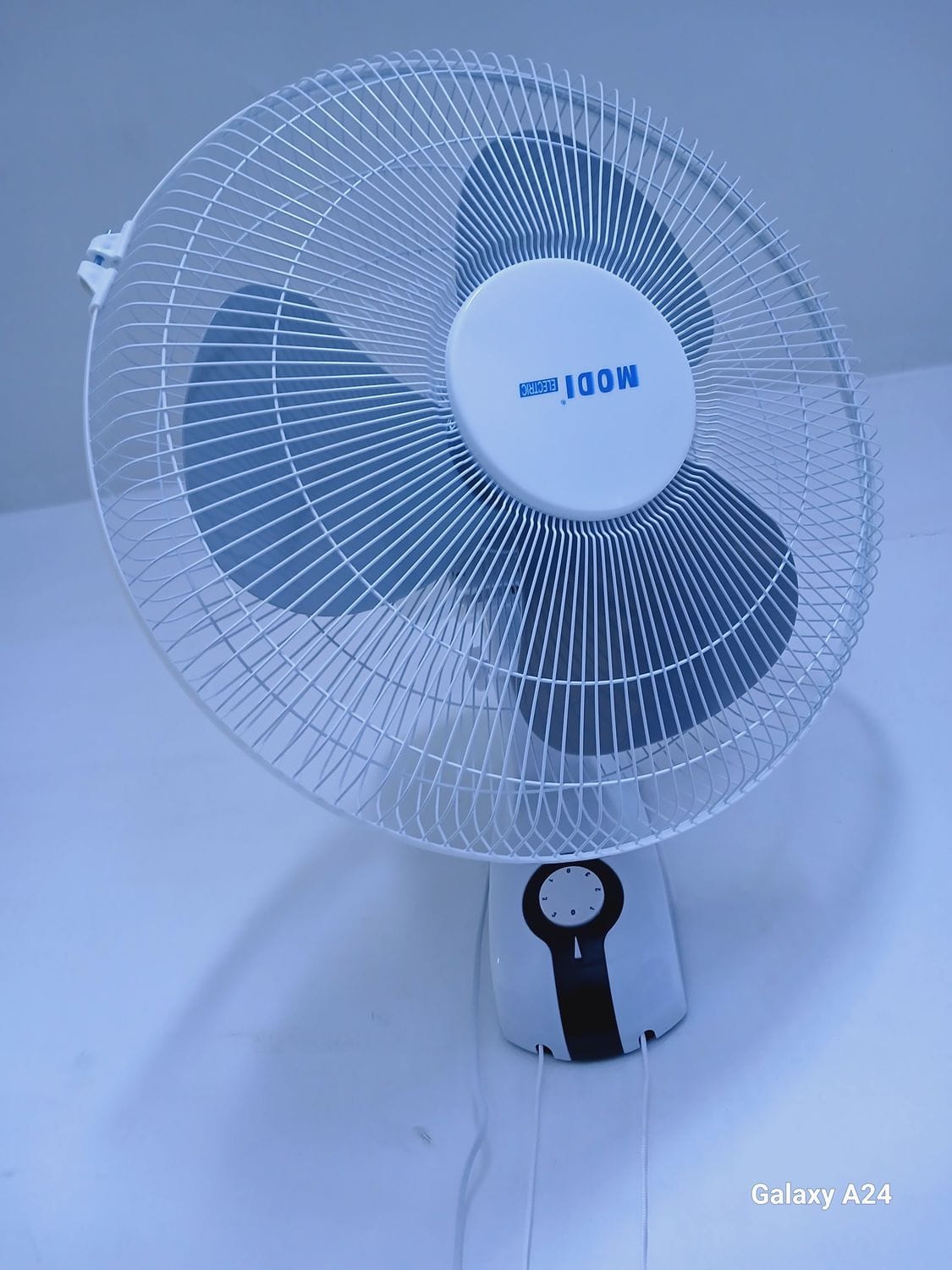

MODI 16 Inch Wall Fan

Experience efficient, space-saving cooling with the MODI 16 Inch Wall Fan. Perfect for homes, offices, shops and workshops, this wall-mounted fan combines a compact profile with high air delivery. Its robust motor, precision-balanced blades and integrated guard make it a reliable choice for spot cooling in areas where ceiling fans are impractical or where floor space is limited.

Key Features

• 2800 CFM airflow for rapid cooling of small to medium-sized rooms

• Low power draw at 50 W to keep energy bills in check

• Three high-efficiency nylon blades designed for smooth, even circulation

• Durable metal guard for user safety and long-term reliability

• Four speed settings to match cooling needs from gentle breeze to high-velocity airflow

• Wall-mount bracket included for secure and flexible installation

• Reversible airflow option for winter ventilation and summer cooling

• Quiet operation below 55 dB at maximum speed for minimal disturbance

• Universal AC100-240 V input for use in diverse locations

Technical Specifications

• Model: MD-WF16
• Blade Diameter: 16 inch (410 mm)
• Number of Blades: 3
• Airflow: 2800 CFM (cubic feet per minute)
• Power Consumption: 50 W (maximum setting)
• Speeds: 4 forward, 1 reverse
• Noise Level: ≤ 55 dB at high
• Motor Type: Single-phase AC induction
• Voltage: AC100-240 V, 50/60 Hz
• Guard Material: Powder-coated steel
• Blade Material: Reinforced nylon
• Mounting: Included wall bracket and hardware
• Dimensions (WxDxH): 450 × 200 × 430 mm
• Net Weight: 3.2 kg
• Operating Temperature: -10 °C to 45 °C
• Certifications: CE, RoHS

Installation Guide

MODI wall fan is designed for straightforward mounting. Follow these steps for a secure setup:

• Switch off power at the main breaker before installation

• Select a sturdy wall location at least 1.8 m above floor level

• Use the included template to mark anchor points on the wall

• Drill holes and insert wall plugs suitable for your wall type

• Attach the mounting bracket with screws and ensure it is level

• Hang the fan motor assembly on the bracket and secure locking bolts

• Connect the fan’s live, neutral and earth wires to the mains supply

• Recheck all connections, restore power and test each speed setting

For detailed wiring diagrams and troubleshooting, visit our Electrical Supplies page.

Performance and Efficiency

The MODI 16 Inch Wall Fan delivers exceptional performance for its size. Its energy-efficient motor consumes only 50 W at peak, providing up to 2800 CFM of airflow—enough to cool rooms up to 15 sqm quickly. The precise blade pitch and aerodynamic design minimise turbulence and noise, ensuring a comfortable breeze even at higher speeds. With four speed settings, you can tailor airflow to your preference—from gentle air circulation for ambient comfort to high-velocity blast for rapid cooling during hot afternoons.

Reversible airflow enhances year-round usability. In summer, select forward rotation to push cool air downwards. In cooler months, reverse the blade direction to circulate warm air trapped near the ceiling back into the living space, helping maintain a balanced temperature and reducing heating costs by up to 10 percent.

Maintenance and Support

With minimal upkeep, the MODI wall fan remains in peak condition for years:

• Clean blades and guard monthly using a soft cloth and mild detergent

• Inspect mounting bracket and hardware every six months to ensure tight fittings

• Lubricate motor bearings annually with light machine oil to maintain smooth operation

• Check electrical connections for corrosion or wear and replace damaged wiring promptly

• If noise or vibration increases, balance the blades using the included balancing kit

• For spare parts, repairs or extended service, contact our support team via Contact Support

Warranty and Compliance

• Two-year manufacturer warranty covering defects in materials and workmanship

• CE certified for safety and electromagnetic compatibility

• RoHS compliant—contains no hazardous substances

• Meets international quality management standards under ISO 9001

Frequently Asked Questions

Q: Can I mount this fan outdoors?
A: This model is IP20 rated and designed for indoor use only. For outdoor applications, consider our IP44-rated wall fan series.

Q: Is the fan compatible with a timer switch?
A: Yes. You can connect the fan to any standard wall-mounted timer switch rated for inductive loads up to 2 A.

Q: How do I reverse the blade direction?
A: Use the direction switch located on the fan’s motor housing. Turn the fan off, change the switch position, then restart.

Q: What blade pitch angle does this fan use?
A: The blades are set at a 14-degree pitch to optimise airflow while reducing motor load and noise.
